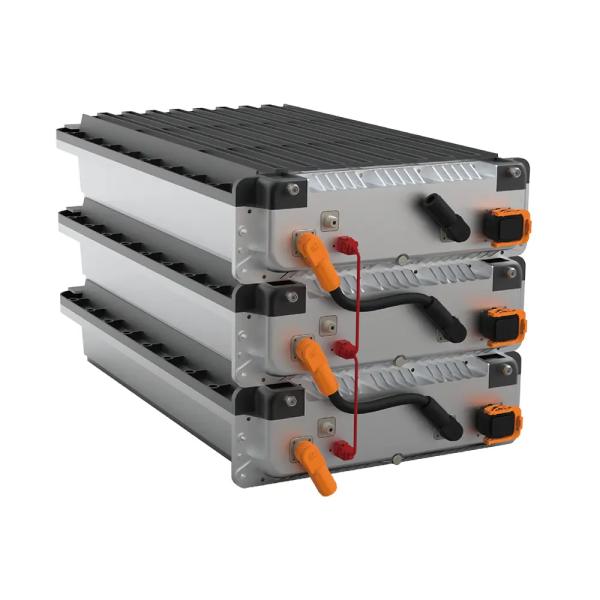

    CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom

    Ask Lasest Price
    Brand Name : CLF/OEM
    Model Number : CLF-R4126
    Certification : CB, UL, CE, ROHS,UN38.3, MSDS, BIS
    Price : Negotiable
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom

    CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom

    PRODUCT PARAMETER

    Specification 1P16S 1P32S 1P48S 2P48S
    Number of Battery Packs 1 2 3 6
    Rated Voltage (V) 51.2 102.4 153.6 153.6
    Rated Capacity (Ah) 150/175 150/175 150/175 300/350
    Rated Power (Kwh) 7.68/8.96 15.36/17.92 23.04/26.88 46.08/53.76
    Weight (kg) ≈99 ≈198 ≈297 ≈594
    PDU Type A A A B
    Specification 3P48S 1P96S 2P96S 3P96S
    Number of Battery Packs 9 6 12 18
    Rated Voltage (V) 153.6 307.2 307.2 307.2
    Rated Capacity (Ah) 450/525 150/175 300/350 450/525
    Rated Power (Kwh) 69.12/80.64 46.08/53.76 92.16/107.52 138.24/161.28
    Weight (kg) ≈891 ≈594 ≈1188 ≈1782
    PDU Type B A B B
    Specification 1P192S 2P192S 3P192S 2P192S
    Number of Battery Packs 12 24 36 17
    Rated Voltage (V) 614.4 614.4 614.4 870.4
    Rated Capacity (Ah) 150/175 300/350 450/525 150/175
    Rated Power (Kwh) 92.16/107.52 184.32/215.04 276.48/322.56 130.56/152.32
    Weight (kg) ≈1188 ≈2376 ≈3564 ≈1683
    PDU Type A B B A

    CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom

    CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom

    CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom

    1. C5 Protection: comprehensive advancedprotection,safe,reliable and stable
    2. Liquid cooling: ensure the stability ofhigh load operation
    3. High defense: integrated cast aluminummolding, easy to resist 20G impact
    4. Unit insulation: insulation up to 5500Vhigh safety factor
    5. Isolation design: key components aresealed and isolated from each other
    6. High security: one-way breathing valveprevents entry of foreign objects

    CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine CustomCLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom

    CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom

    CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine CustomCLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom

    CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom

    CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom

    FAQs

    Q1. Are you a factory?
    A: Yes, we are a professional lithium battery manufacturer in China, and factory tour is acceptable.

    Q2. Do you accept OEM/ODM?
    A: Yes, OEM, ODM, LOGO, and STICKER is acceptable, our professional team is on hand to offer you any solutions.

    Q3. Can I have a sample order first?
    A: Yes, sample order is acceptable.

    Q4. How will my order be shipped?
    A: Chalong Fly offers a variety of shipping methods, such as DHL, UPS, FedEx, TNT, Airline and sea shipping.

    Q5: What kind of certificates do you have?
    A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.

    Q6. Can we sign a NDA in order for a long-term cooperation?
    A: Yes, the client’s requirements is respected.

    Q7. Why do you choose Chalong Fly?
    A: Chalong Fly R&D center has more than 100 R&D engineers, 25 of whom have more than 10 years of experience related to power development. We have a deep understanding of power electronics technology, and a full understanding of the needs of the application industry, and have developed many public technology solutions.
